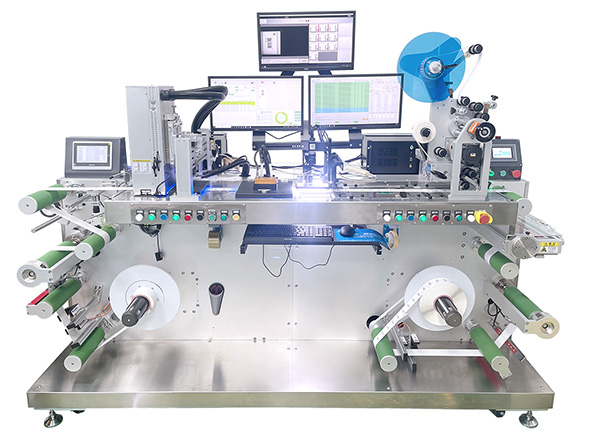

RFID Coil Label Printing & Reading & Writing Detection Machine
Functions and Features
1. The equipment integrates UV printing and RFID reading & writing detection functions, can shorten production process, improve production efficiency and save labor cost.
2. Printing station functions include dust removal, detection of multiple cards, UV printing, pre-curing and main curing.
3. Reading and writing station has functions of TID detection, writing EPC, reading EPC detection and waste collection.
4. Multi-station RFID reading and writing in parallel, improves the reading and writing effectively.
5. Multi-station collaborative control system ensures the reliability of RFID reading and writing in parallel.
Technical Specification
|
Printing Speed |
10-45m/min |
|
Reading&Writing Speed |
500-1200PCS/min |
|
Printing Resolution |
Printhead direction:600DPI, motional direction:300 - 1200DPI adjustable |
|
Printing Width |
108mm extensible |
|
Card Width |
20-200mm |
|
Printing Color |
Monochrome, Customized color, Multiple color |
|
Suitable Printing Material |
Copper plate paper, semi-copper plate paper, rough and gloss paper, PVC,PP, PE, etc |
|
Printing Content |
Support variable one-dimensional code and QR code, batch images and PDF documents. |
|
Optional Functions |
Visual detection, freeze picture, error label marking, anti-static, corona,Reading TID before printing |
|
Power |
AC220-240V 50HZ 2.5KW |
|
Equipment Size |
(L)2700*(W)1043*(H)1510 mm |
