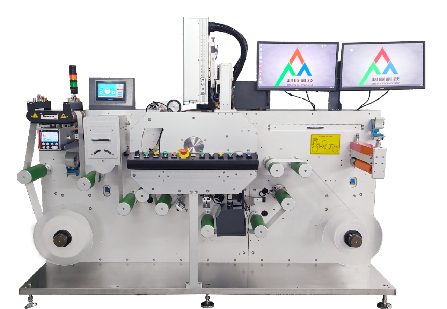

RFID Coil Label Ink-jet Printing Machine
Functions and Features
1. Functions of dust removal, UV printing, pre-curing and main curing.
2. Full servo control feeding platform, constantly tension control system, with large roller, ensure the RFID tag feeding process 100% no damage.
3. The patented printhead structure can install multiple-printhead with no spacing, support full page printing.
4. The system supports minimum 2 LB font HD printing.
Technical Specification
|
Printing Speed |
40—80 m/min |
|
Printing Resolution |
Printhead direction:600DPI, motional direction:300 - 1200DPI adjustable |
|
Printing Width |
108 mm extensible |
|
Printing Color |
Monochrome, Customized color, Multiple color |
|
Suitable Printing Material |
Copper paper plate, semi-copper plate, part of wool fabric and gloss, PVC, PP, PE, etc. |
|
Printing Content |
Support variable one-dimensional code and QR code, batch images and PDF documents. |
|
Optional Functions |
Visual detection, freeze picture, error label marking, dust removal,anti-static,corona,Reading TID before printing |
|
Power |
AC220-240V 50HZ 2KW |
|
Equipment Size |
(L)2200*(W)1050*(H)1700mm |
