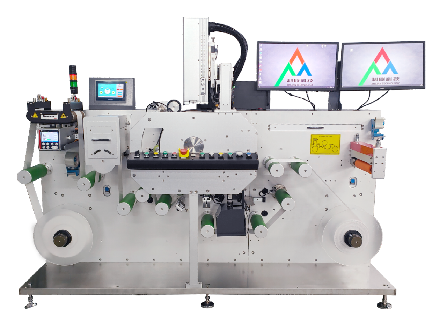

RFID Coil Label Ink-jet Printing Machine -

Functions and Features

1. Functions of dust removal, UV printing, pre-curing and main curing.

2. Full servo control feeding platform, constantly tension control system, with large roller, ensure the RFID tag feeding process 100% no damage.

3. The patented printhead structure can install multiple-printhead with no spacing, support full page printing.

4. The system supports minimum 2 LB font HD printing.

Technical Specification

Printing Speed	40~80 m/min
Printing Resolution	Printhead direction:600DPI, motional direction:300 - 1200DPI adjustable
Printing Width	54mm extensible
Printing Color	Monochrome, Customized color, Multiple color
Suitable Printing Material	Copper paper plate, semi-copper plate, part of wool fabric and gloss, PVC, PP, PE, etc.
Software	Support variable one-dimensional code and two-dimensional code, batch images and PDF documents.
Optional Functions	Color printing, visual detection, still picture, waste collection, dust removal, electrostatic removal, corona.
Power	AC220~240V 50HZ 2.5KW
Equipment Size	(L)2240(W)1013（H）1500 mm
